PostSubject: Breeched Tech Target Gun   Breeched Tech Target Gun I_icon_minitimeThu Apr 07, 2011 12:05 pm

Materials needed

PVC

3/4in. CPVC
1/2in. CPVC
1/2in. CPVC coupler

Bass

15/32 brass

Glue

Hot Glue
Your choice of glue.

Tape

Duct tape
Electrical tape


The Breech

First get your Tech Target and open it up. You then need to get your plunger tube and make the front of it resemble this:

Breeched Tech Target Gun Dizzy091
(I actually have modded this four different ways and one time the nub actually came of remodding it)

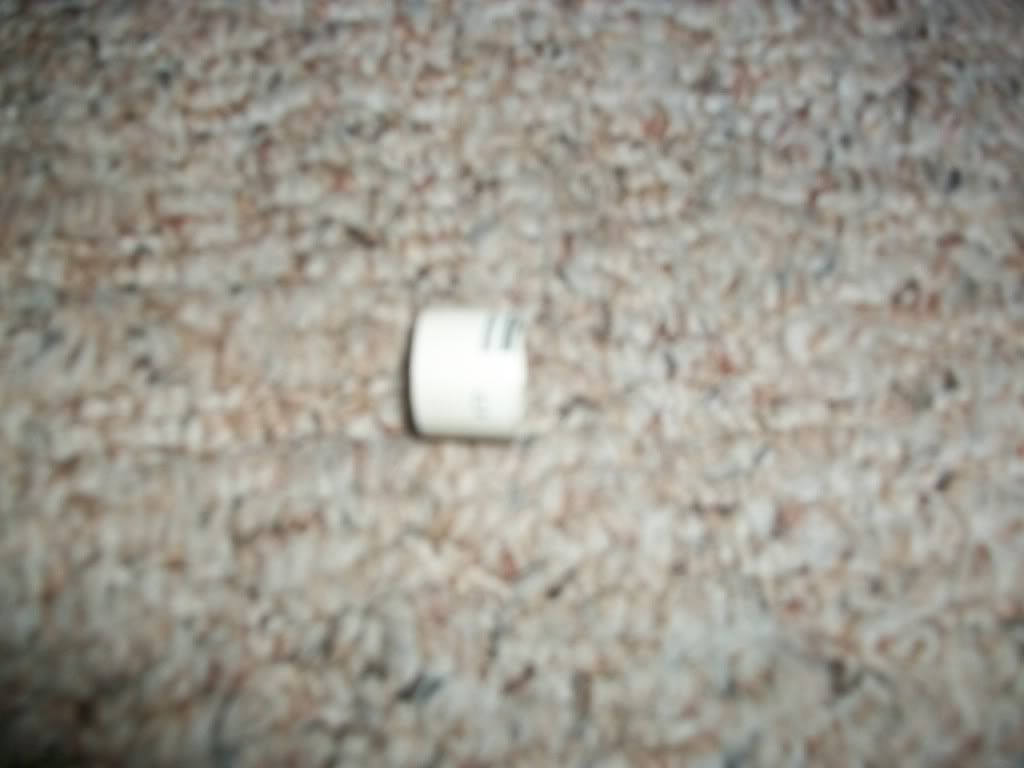

Now you need to get a 1/2in. piece long piece of 1/2in. CPVC

Breeched Tech Target Gun Dizzy092

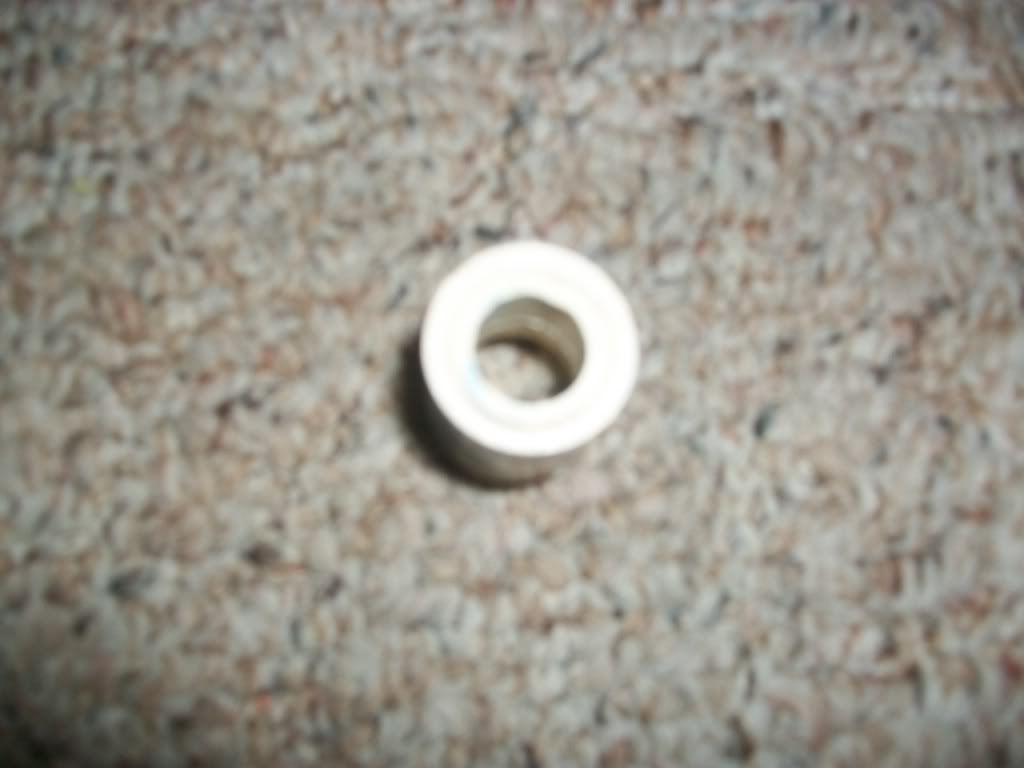

and shove it into your coupler.

Breeched Tech Target Gun Dizzy093

Now get a one in. piece of 15/32 brass

Breeched Tech Target Gun Dizzy094

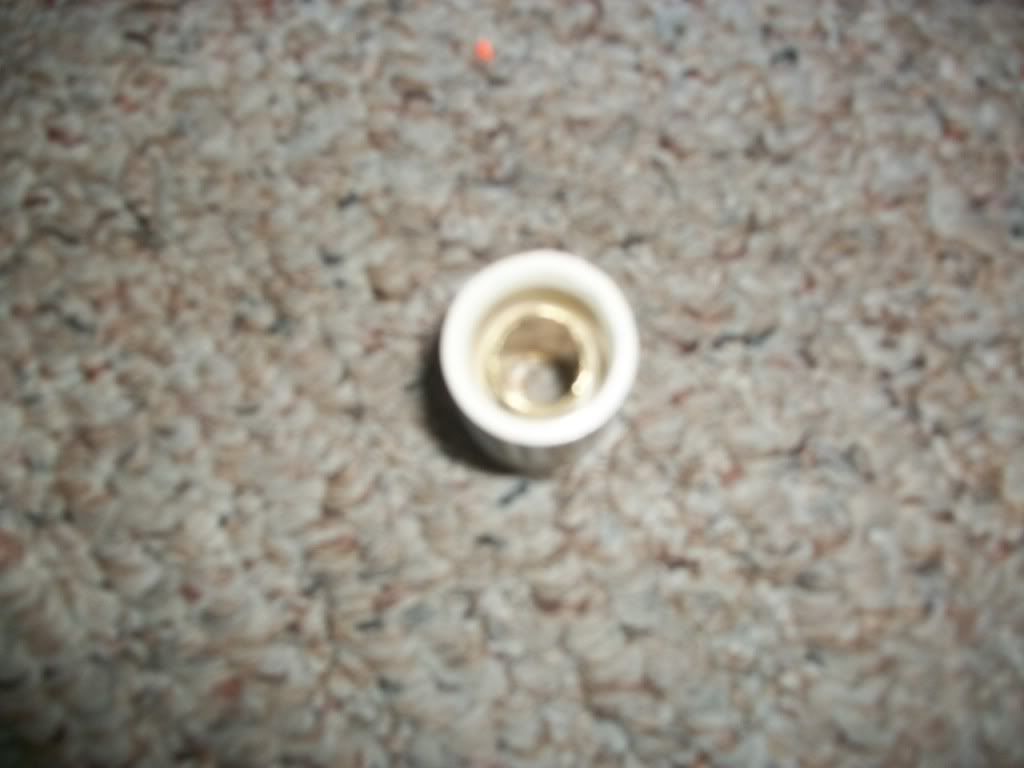

and glue it into the piece of CPVC in the coupler (it doesn't have to be air tight.)

Breeched Tech Target Gun Dizzy095

Now get your piece of 3/4in. CPVC

Breeched Tech Target Gun Dizzy096

and glue it onto the top of your coupler (make sure it's straight).

Breeched Tech Target Gun Dizzy096

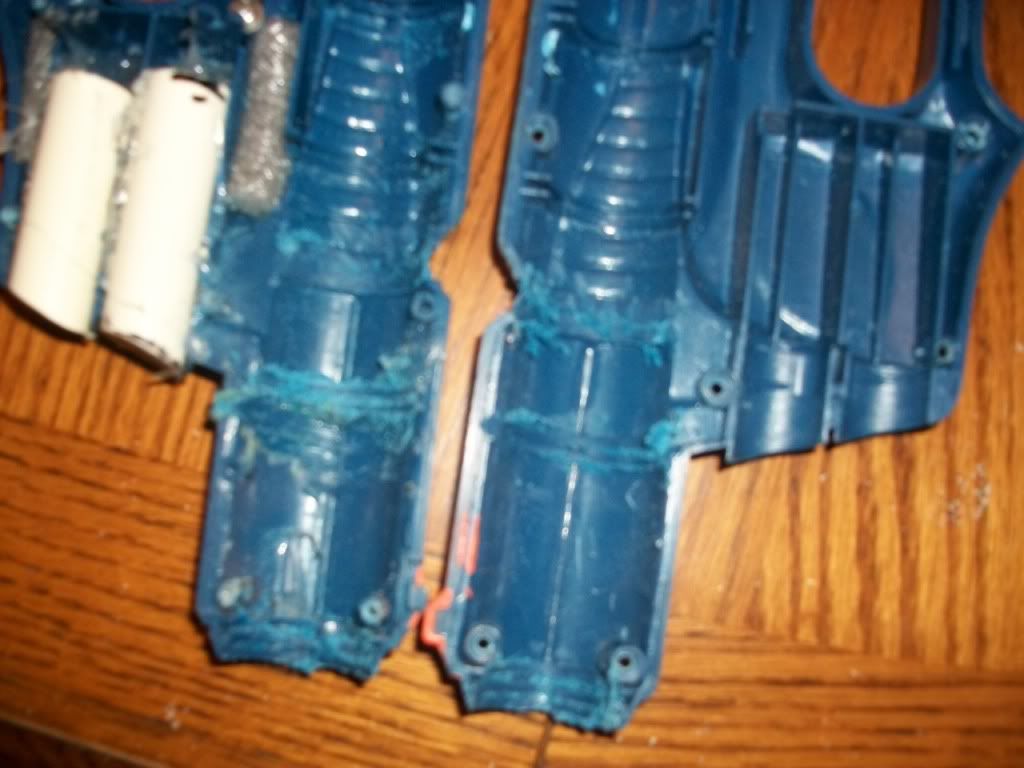

Dremel out the inside of your shell so that it resembles this:

Breeched Tech Target Gun Dizzy098

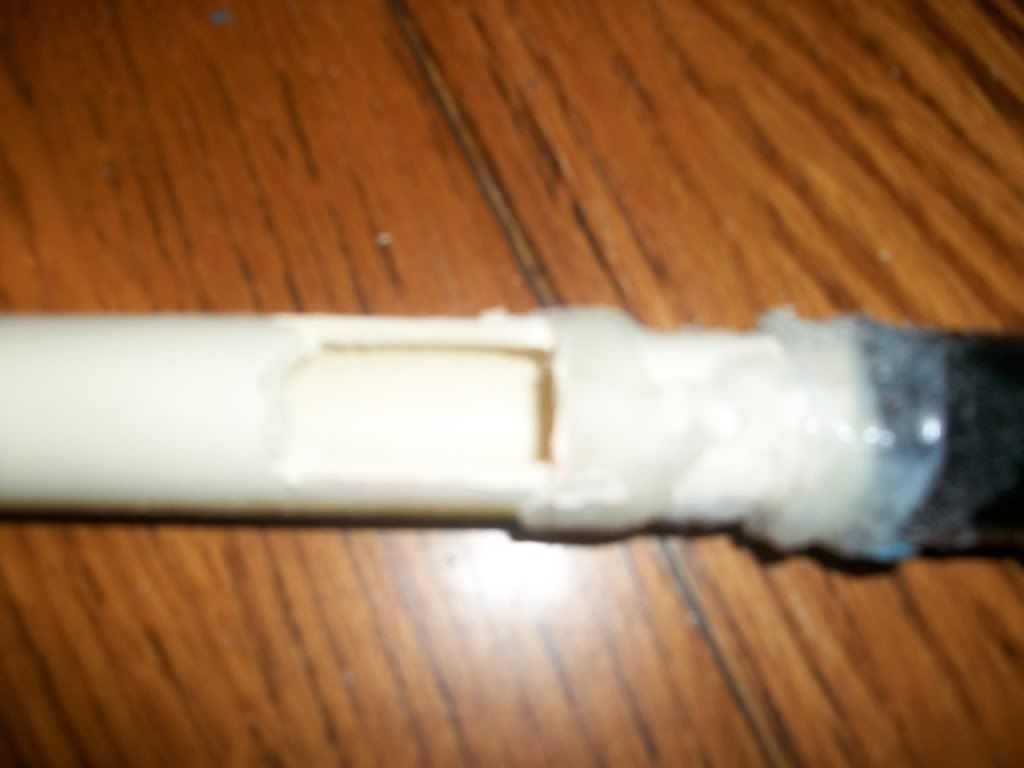

Cut a slot in your 3/4in. CPVC towards the coupler (make sure it is 1/2in. longer than your darts).

Breeched Tech Target Gun Dizzy100

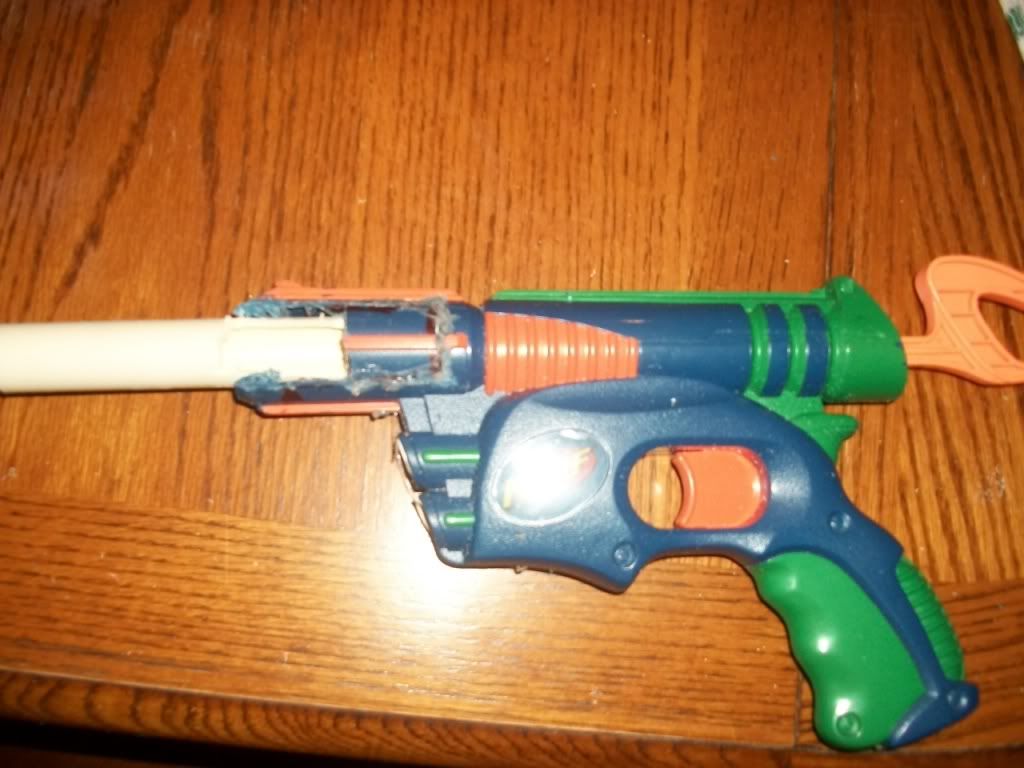

I kind of messed this part up, but find out where the end of you breech hole is and then cut one side of the shell in front of the hole:

Breeched Tech Target Gun Dizzy102

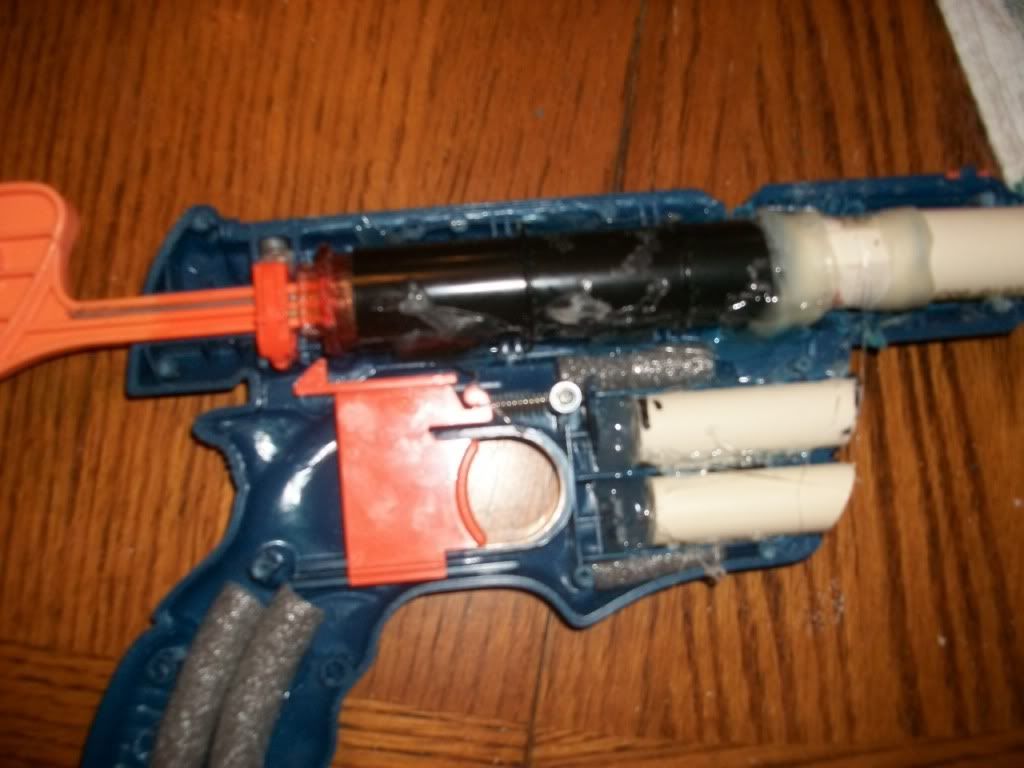

Glue in all of the internals with hot glue and do what you want with the spring power (I added a tech 4 spring and am getting a good amout of power)

Breeched Tech Target Gun Dizzy101

Put the gun back together and cut down the 3/4in. CPVC to a good length.

Breeched Tech Target Gun Dizzy103

Now, get a 5 1/2 long piece of 1/2 cpvc for your barrel

Breeched Tech Target Gun Dizzy104

Locking Mech

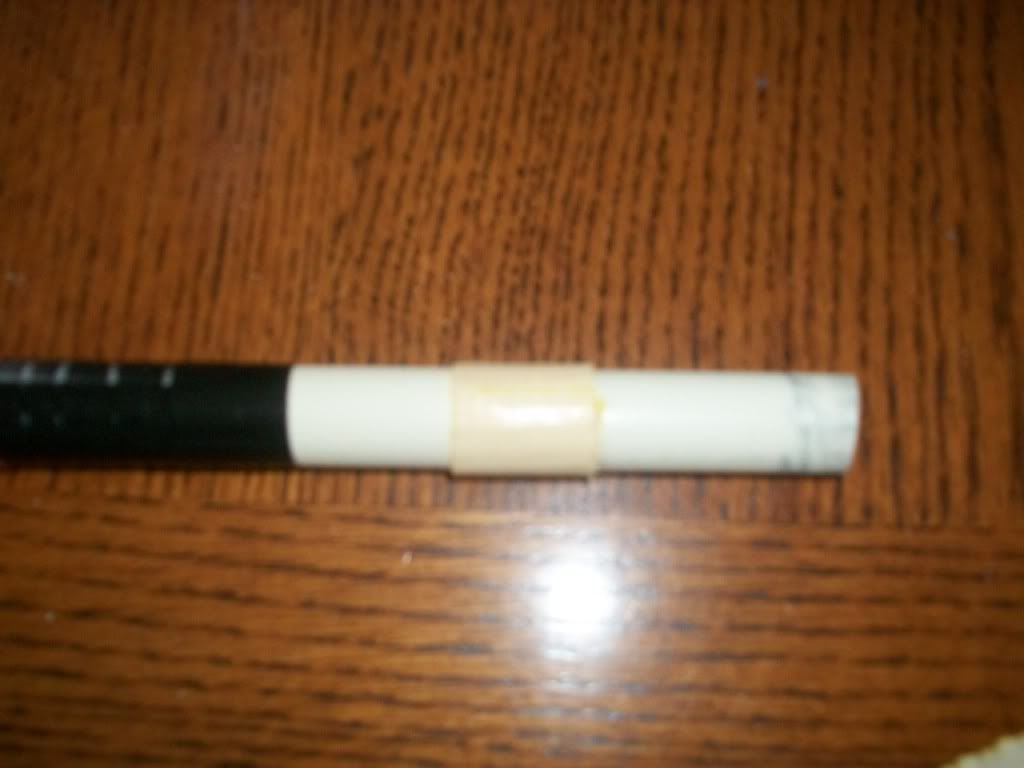

Now take a piece of duct tape and cut it in half. Next, rap it backwards around the piece of CPVC:

Breeched Tech Target Gun Dizzy105

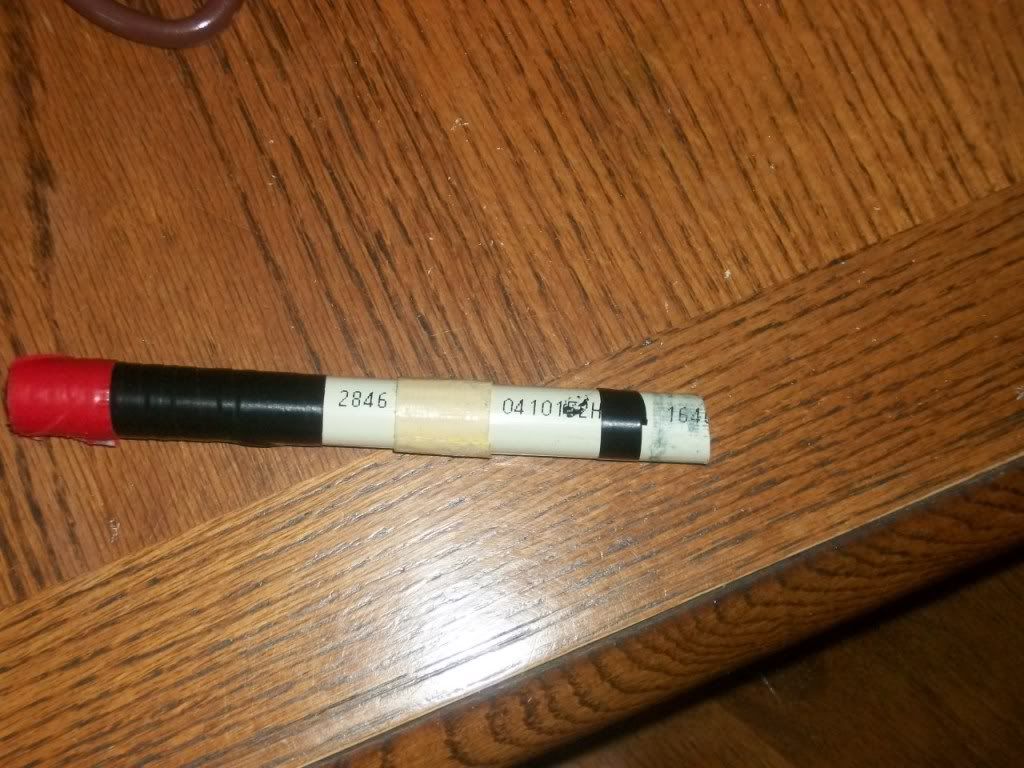

Now cut a piece of electical tape in half and rap it around the CPVC as close as you can get it to the end of the CPVC without it getting in the coupler.

Breeched Tech Target Gun Dizzy107

Put it into the 3/4in. CPVC (no glue is needed because you rapped the duct tape backwards)

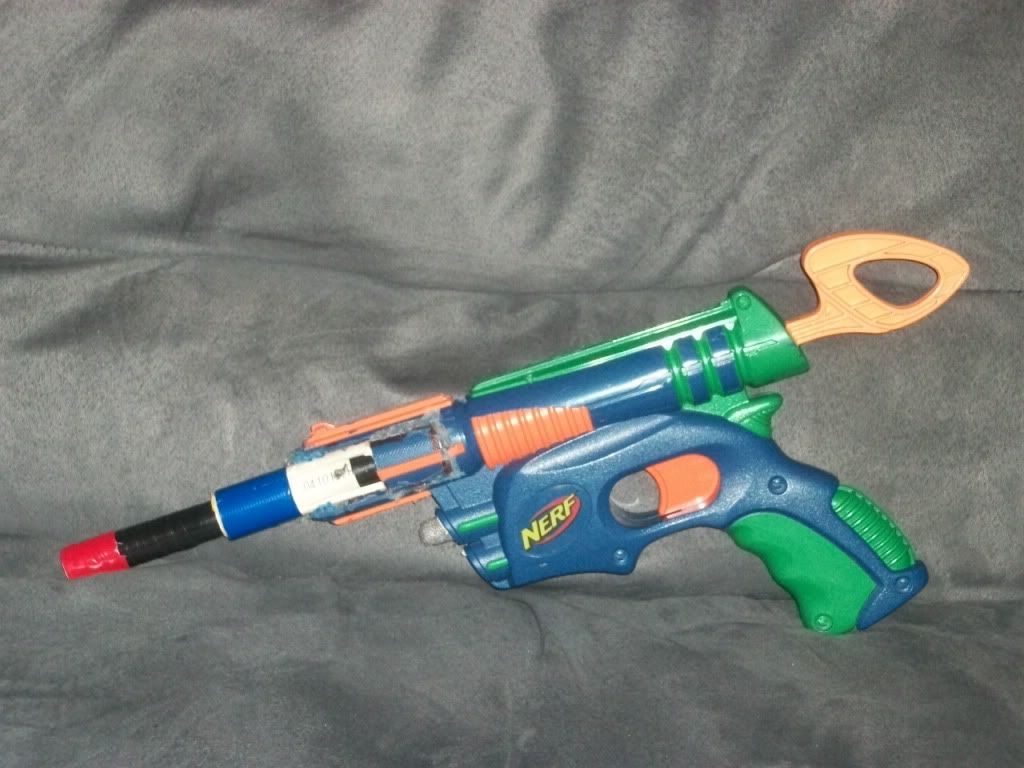

Now you are done!

Breeched Tech Target Gun Dizzy109

I do not have the ranges yet because it is snowing outside. I have shot it in my basement and it hits the other wall 50 ft. away no problem.
